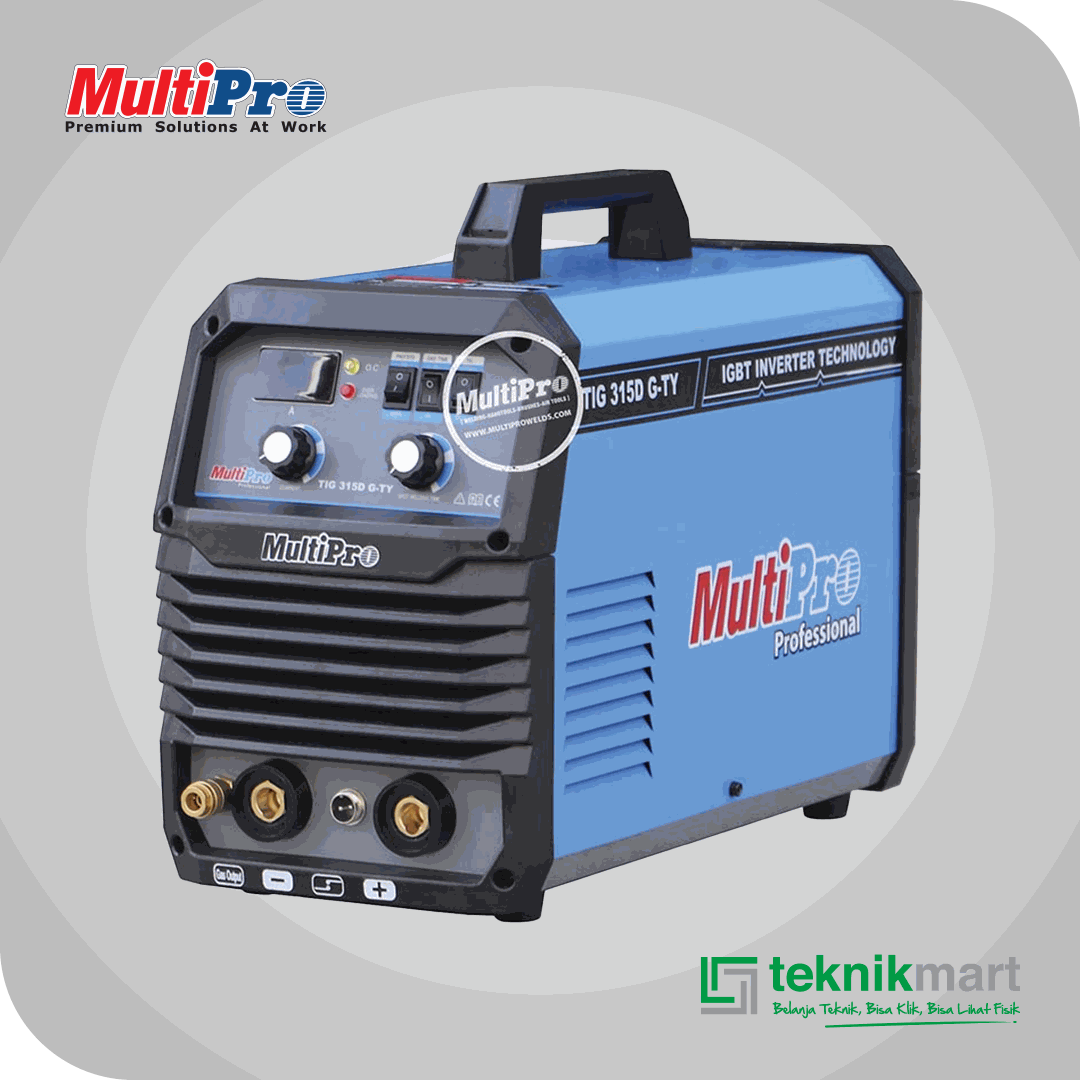

MULTIPRO TIG 315D G-TY INVERTER 270DC TIG & MMA 380V DIGITAL DISPLAY

Description

MULTIPRO TIG 315D G-TY INVERTER 270DC TIG & MMA 380V DIGITAL DISPLAY

Spesifikasi:
Input Voltage: 3ph 380 V � 15%
Frequency: 50 / 60 Hz
No-load Voltage: 65 VDC
Rated Input Power: TIG : 9.3 KVA;MMA : 13.8 KVA
Rated Input Current: TIG : 14.1 A; MMA : 21 A
Rated Working Voltage: TIG : 10.4 – 22.6 V;MMA : 20.8 – 32.6 V
Range Of Output Current: TIG : 10 ~ 270 A; MMA : 20 ~ 270 A
Rated Duty Cycle : 60%
Power Factor: ?0.89
Efficiency: ?85%
Insulation Type: F
Protection Type: IP21S
Pulse Frequency : –
Pulse Duty: –
Arc Leading: HF
AC Frequency: –
Clean Width: –
Up Slope: –
Down Slope: –
Post-Flow Time: –
Pre-Flow Time: –
Weight: 11.6 Kg
Dimension (LxWxH): 470 x 220 x 360 mm
