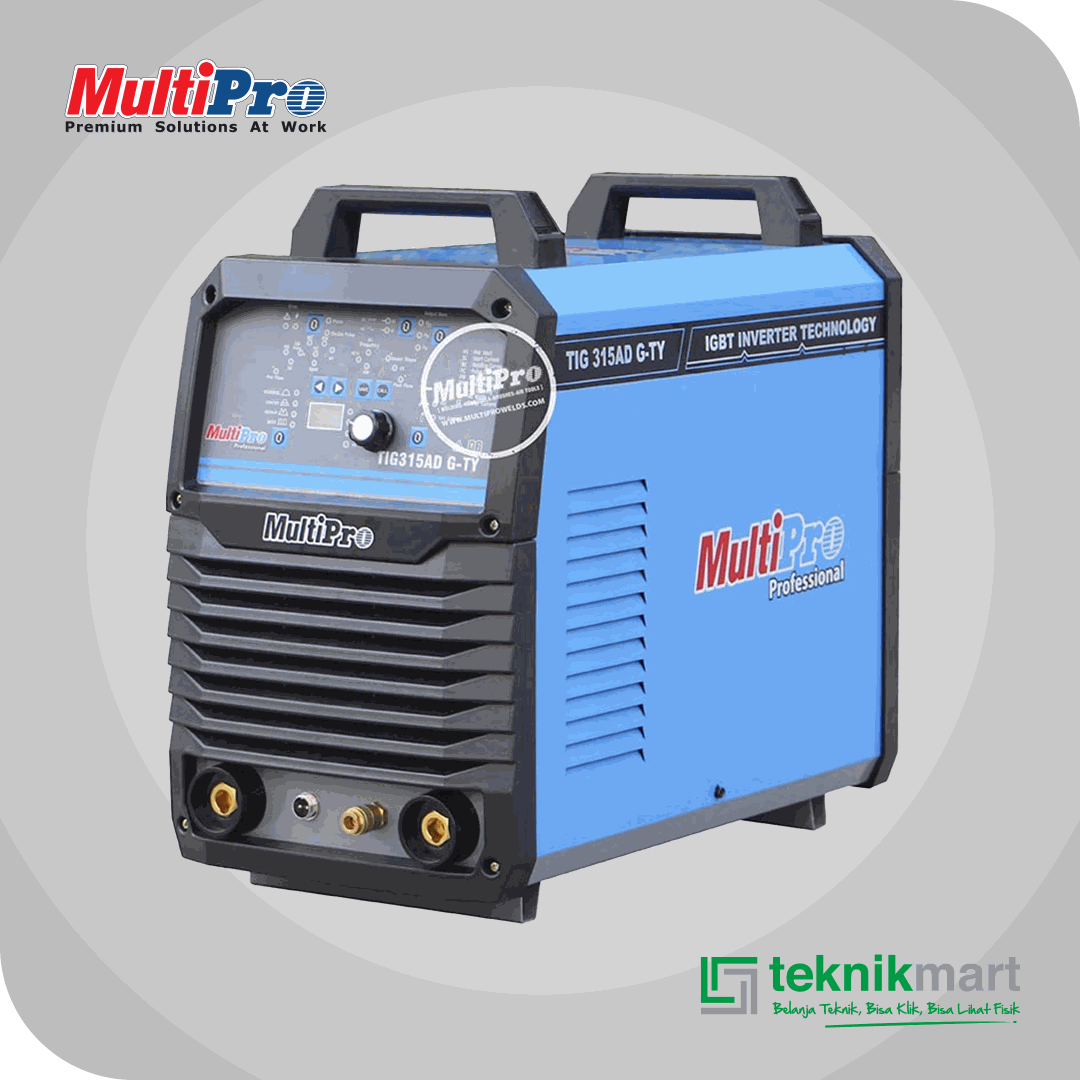

MULTIPRO TIG 315AD G-TY INVERTER 315 AC/DC TIG & MMA 380V DIGITAL DISPLAY

Description

MULTIPRO TIG 315AD G-TY INVERTER 315 AC/DC TIG & MMA 380V DIGITAL DISPLAY

Spesifikasi:
Input Voltage: 3ph 380 V � 15%
Frequency: 50 / 60 Hz
No-load Voltage: 60 VDC
Rated Input Power: TIG : 9.3 KVA;MMA : 13.8 KVA
Rated Input Current: TIG : 14.1 A ;MMA : 21 A
Rated Working Voltage: TIG : 10.4 – 22.6 V; MMA : 20.8 – 32.6 V
Range Of Output Current: TIG : 10 ~ 315 A; MMA : 20 ~ 315 A
Rated Duty Cycle :60%
Power Factor :?0.89
Efficiency :?85%
Insulation Type :F
Protection Type :IP21S
Pulse Frequency :0.5 – 300 Hz
Pulse Duty :10 – 90 %
Arc Leading :HF Vibration
AC Frequency: 60 Hz
Clean Width : 20 – 80 Hz
Up Slope : 0 ~ 10 S
Down Slope : 0 ~ 10 S
Post-Flow Time: 0 ~ 10 S
Pre-Flow Time: 2 ~ 10 S
Weight: 25 Kg
Dimension (LxWxH): 515 x 275 x 465 mm
