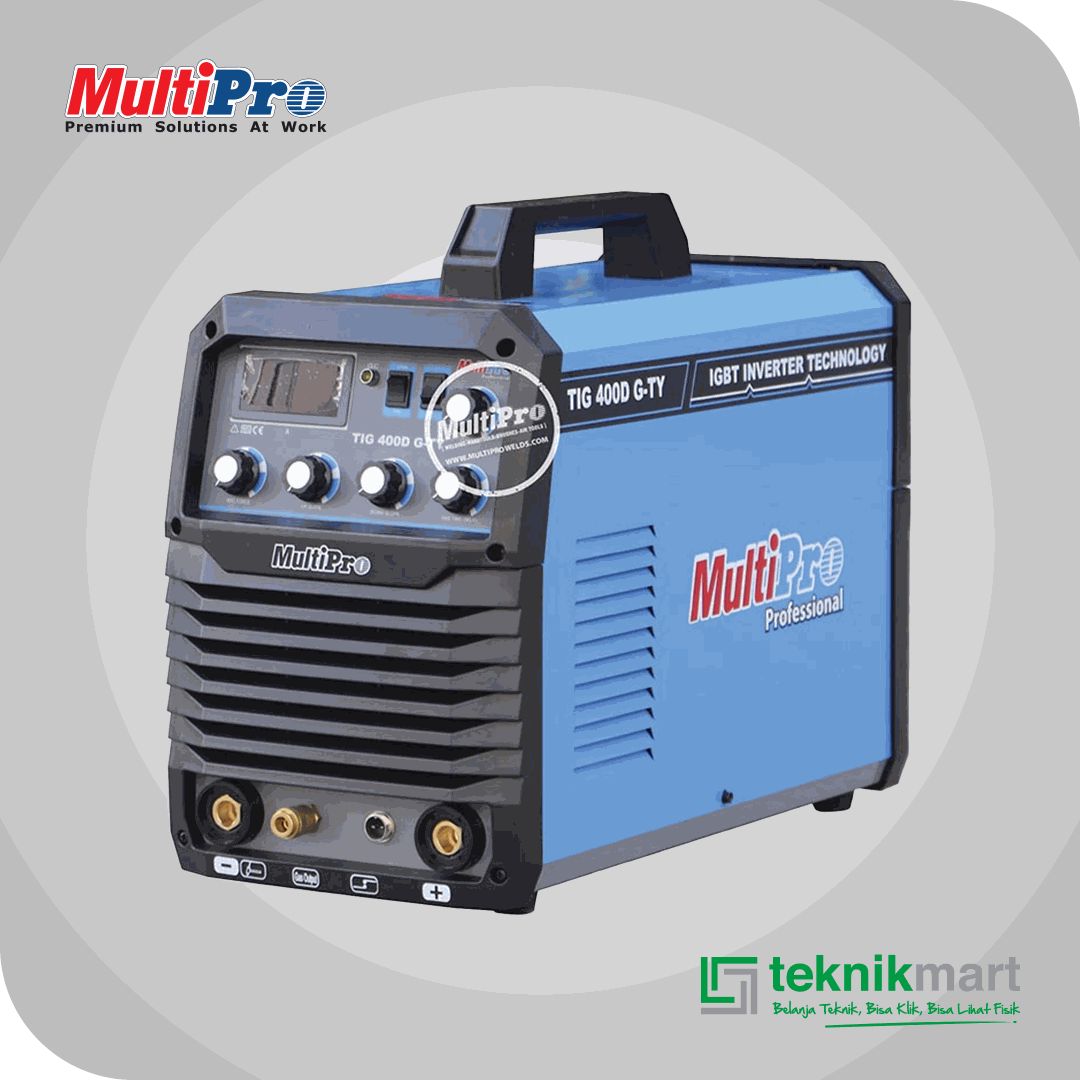

MULTIPRO TIG 400D G-TY INVERTER 400DC TIG & MMA 380V DIGITAL DISPLAY

Description

MULTIPRO TIG 400D G-TY INVERTER 400DC TIG & MMA 380V DIGITAL DISPLAY

Spesifikasi:
Input Voltage : 3ph 380 V � 15%
Frequency : 50 / 60 Hz
No-load Voltage: 60 VDC
Rated Input Power : TIG : 13.6 KVA;MMA : 19.7 KVA
Rated Input Current: TIG : 20.7 A; MMA : 30 A
Rated Working Voltage: TIG : 10.4 – 26 V;MMA : 20.8 – 36 V
Range Of Output Current:TIG : 10 ~ 400 A; MMA : 20 ~ 400 A
Rated Duty Cycle: 60%
Power Factor: ?0.89
Efficiency: ?85%
Insulation Type: F
Protection Type :IP21S
Pulse Frequency : –
Pulse Duty: –
Arc Leading: HF
AC Frequency : –
Clean Width: –
Up Slope : 0 ~ 10 S
Down Slope : 0 ~ 10 S
Post-Flow Time : 0 ~ 10 S
Pre-Flow Time : –
Weight : 22 Kg
Dimension (LxWxH) : 510 x 240 x 410 mm
