Description

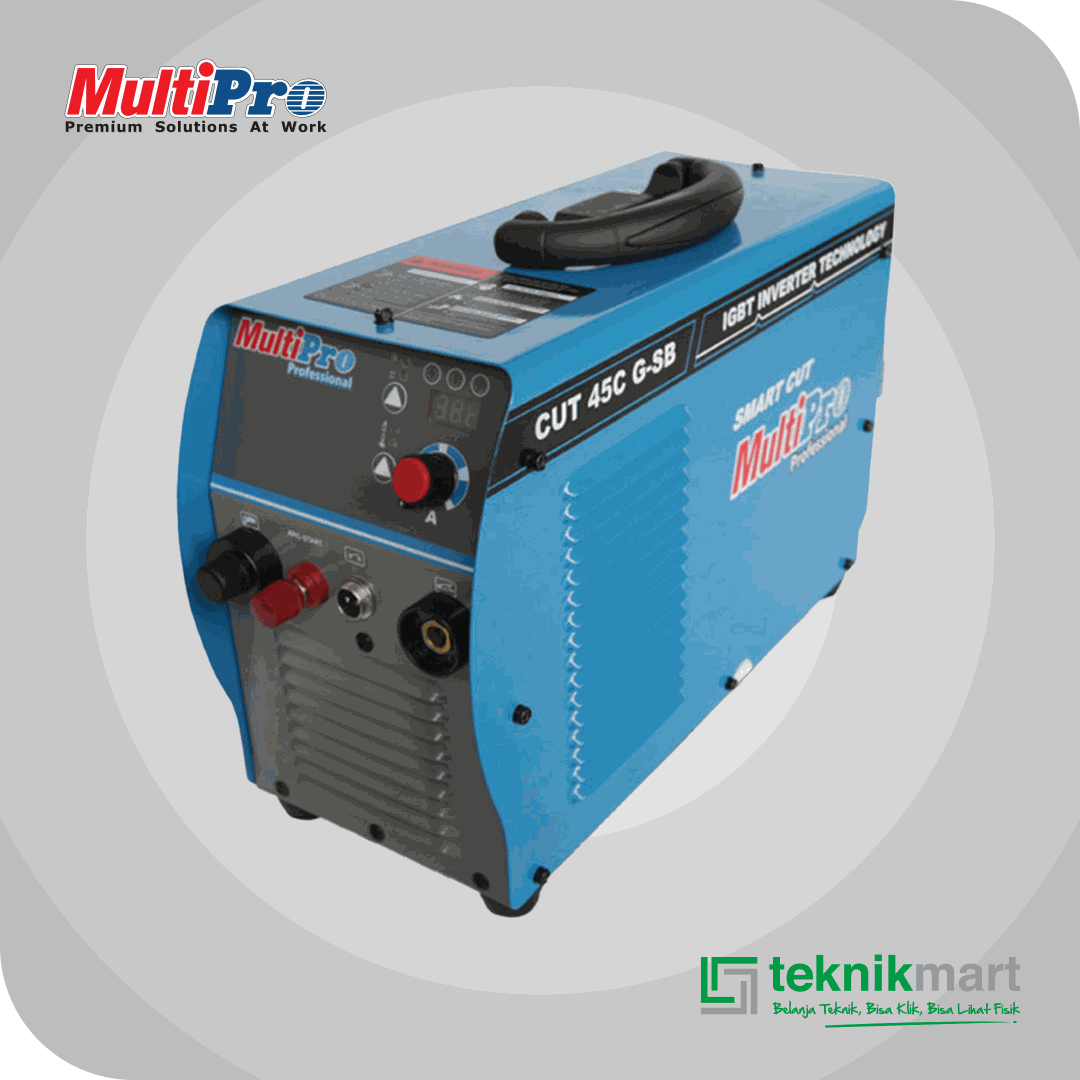

MULTIPRO SMART CUT 45C G-SB PLASMA CUTTING MACHINE 45A 220V 15KVA
Spesifikasi:
Input Power Voltage:1ph 220 V 15%
Input Voltage Frequency: 50 / 60 Hz
Rated Input Power: 4.7 KVA
Rated Input Current: 32 A
No-load Voltage: 265 V
Range of Output Current: 20-35 / 20-45 A
Arc Striking Mode: Non-Contact
Range Working Voltage: 88-96 V
Built-in Compressors Performance
Maximum Cutting Thickness: 20 mm
Excellent Cutting Thickness: 10 mm
Conventional Air Compressors Cutting Performance
Maximum Cutting Thickness: 25 mm
Excellent Cutting Thickness: 12 mm
Working Air Pressure : 0.4 – 0.45 Mpa
Rated Duty Cycle : 100 %
Power Factor : ? 0.7
Efficiency : ? 85%
Insulation Type: F
Protection Type : IP21S
Weight: 12 Kg
Dimension: 407 x 160 x 280 mm
STANDARD ACCESSORIES
6M Plasma Torch S45
Part Kits Set Nozzle
0.6/0.8/0.9 mm
2 pcs Electrode
Distance Spring
Earth Clamp Set & Air Regulator
