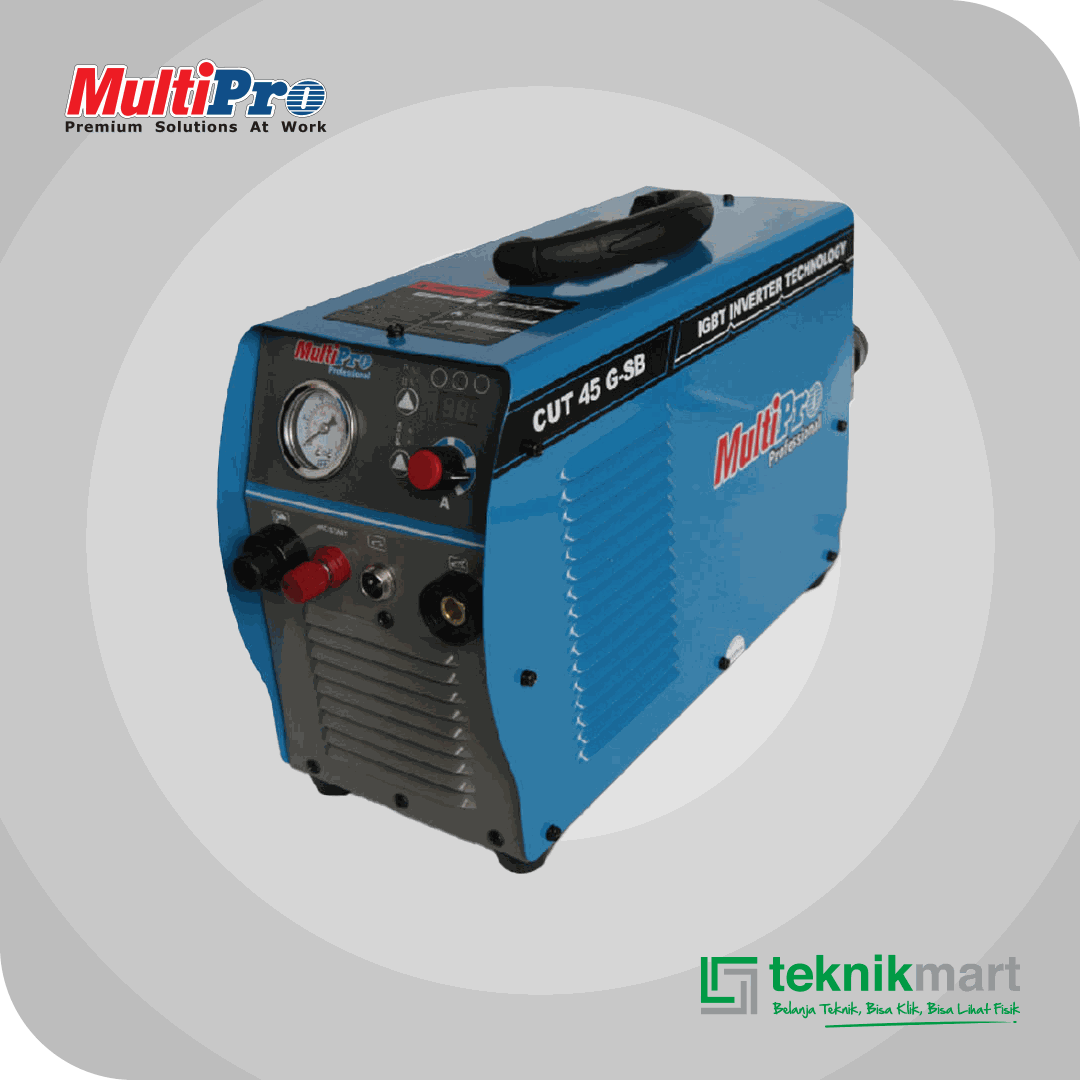

MULTIPRO CUT 45 G-SB PLASMA CUTTING MACHINE 45A 220V 7,4KVA

Description

MULTIPRO CUT 45 G-SB IGBT INVERTER TECHNOLOGY PLASMA CUTTING MACHINE 45A

Spesifikasi :
Input Power Voltage: 1ph 220 V � 15%
Input Voltage Frequency :50 / 60 Hz
Rated Input Power : 7.4 KVA
Rated Input Current : 32 A
No-load Voltage : 285 V
Range of Output Current : 20 – 45 A
Arc Striking Mode : Contact
Range Working Voltage : 88-98 V

Conventional Air Compressors Cutting Performance
Maximum Cutting Thickness : 25 mm
Excellent Cutting Thickness : 12 mm
Working Air Pressure : 0.4 – 0.45 Mpa
Rated Duty Cycle: 100 %
Power Factor : ? 0.7
Efficiency : ? 85%
Insulation Type : F
Protection Type : IP21S
Weight : 8.2 Kg
Dimension : 407 x 160 x 280 mm

STANDARD ACCESSORIES
6M Plasma Torch PT31
Part Kits Set Nozzle
0.6/0.8/0.9 mm
Earth Clamp Set
2 pcs Electrode
Distance Springe
Air Hose Set & Air Regulator
