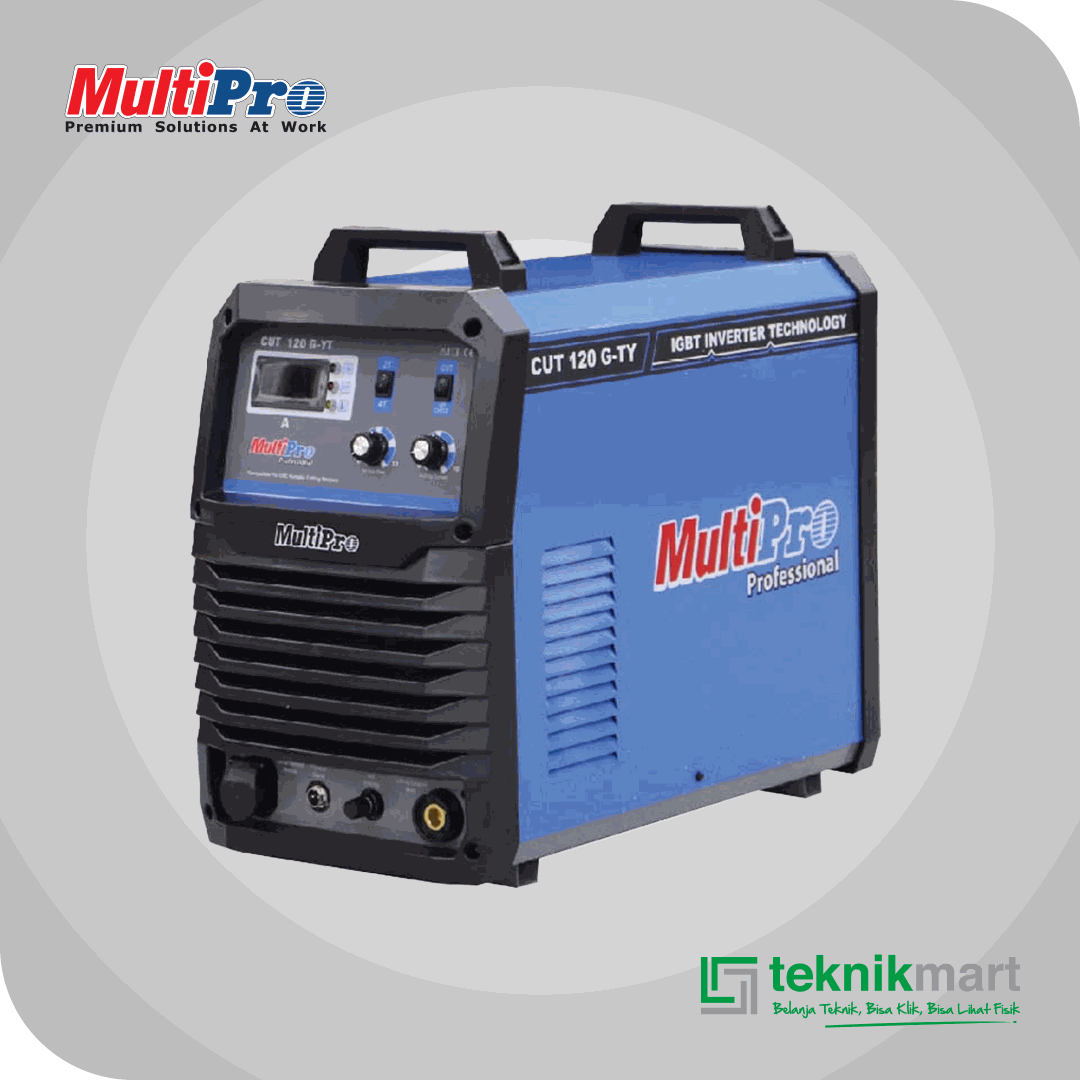

MULTIPRO CUT 120 G-TY PLASMA CUTTING MACHINE 3PHASE-380 32V 25,7KVA

Description

MULTIPRO CUT 120 G-TY PLASMA CUTTING MACHINE 3PHASE-380 32V 25,7KVA IGBT INVERTER TECHNOLOGY

Spesifikasi :
Input Voltage: 3ph 380 V
Frequency : 50 / 60 Hz
Rated Input Power : 25.7 KVA
Cutting Airflow : 250 A
No-load Voltage : 320 V
Range of Output Current : 21 – 120 A
Arc Striking Mode : Non-Contact
Rated Working Voltage : 129 V

Conventional Air Compressors Cutting Speed Performance
Maximum Cutting Thickness : 40 mm
Excellent Cutting Thickness : 35 mm
Working Air Pressure : 0.4 – 0.55 Mpa
Rated Duty Cycle : 60 %
Power Factor : ? 0.95
Efficiency : ? 85%
Insulation Type : H
Protection Type : IP21S
Weight : 43.5 Kg
Dimension : 576 x 297 x 557 mm

STANDARD ACCESSORIES
6M Plasma Torch P80
Part Kits Set Nozzle 1.3/1.5/1.7 mm
2 pcs Electrode & Roller Guide
3M Earth Clamp Set
6M Air Hose Set & Air Regulator
2 pcs Hose Clip
