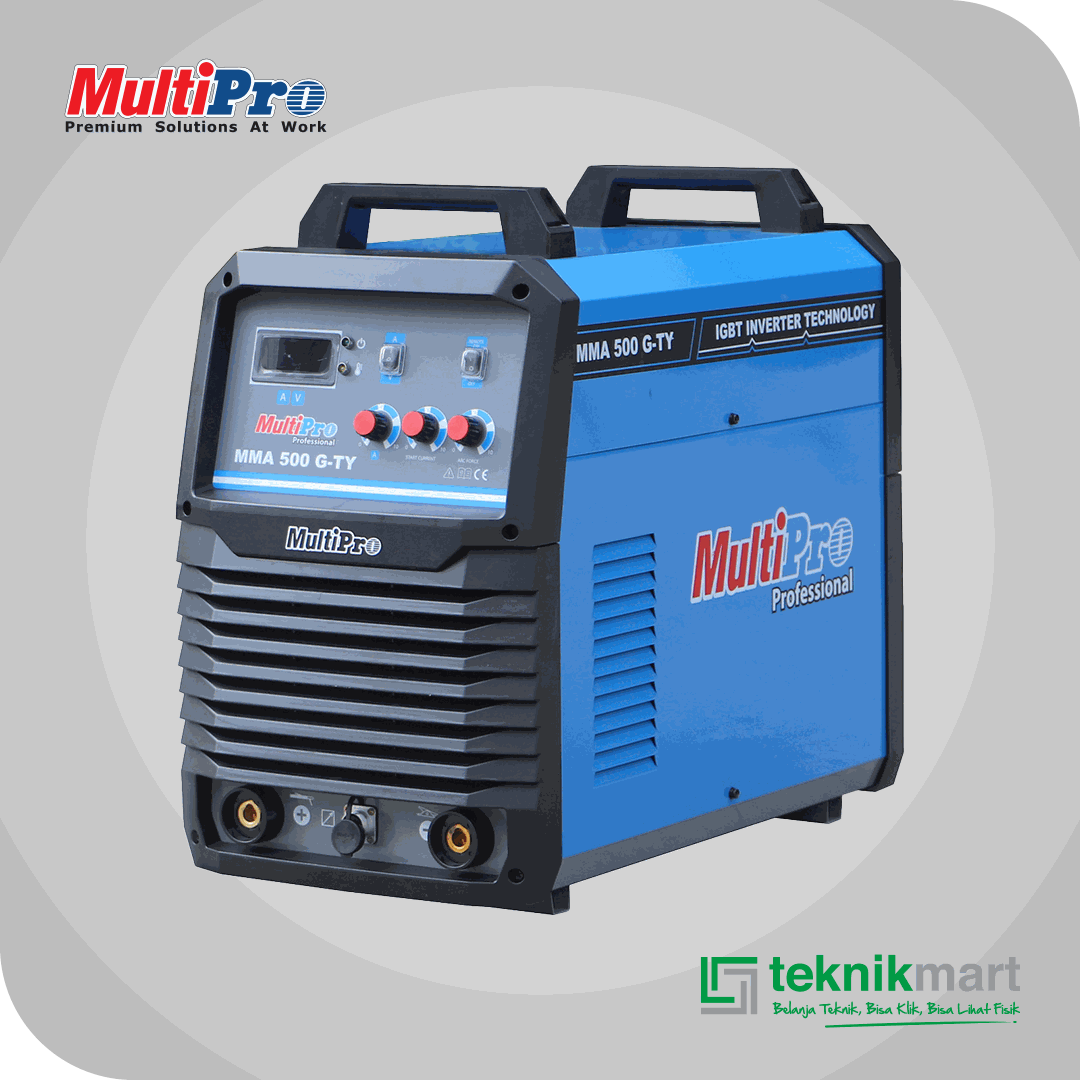

MULTIPRO MMA 500 G-TY WELDING MACHINE 500A 380V 3PHASE 45.6KVA

Description

MULTIPRO MMA 500 G-TY WELDING MACHINE 500A 380V 3PHASE 45.6KVA

Spesifikasi:
Input Voltage : 3ph 380V � 15%
Frequency : 50 / 60 Hz
Rated Input Power : 45.6 KVA
Range Working Voltage : 40 V
No-load Voltage : 75 V
Range of Output Current : 20 ~ 500 A
Rated Input Current : 38 A
Arc Force Range : 0 – 80 mm
Diameter of Electrode : � 2.6 ~ 5.0
Rated Duty Cycle : 100%
Power Factor : 0.85
Efficiency 😕 85
Insulation Type: F
Protection Type : IP21S
Weight : 38.5 Kg
Dimension : 628 x 330 x 565 mm

STANDARD ACCESSORIES
Euro Connector 2 Pcs

SUITABLE
Electrode 2.6 ~ 5.0 mm (Basic & Rutile) (AWS E6013, E7018, E7016, Etc.)
Heavy Industrial
Work with Generator
