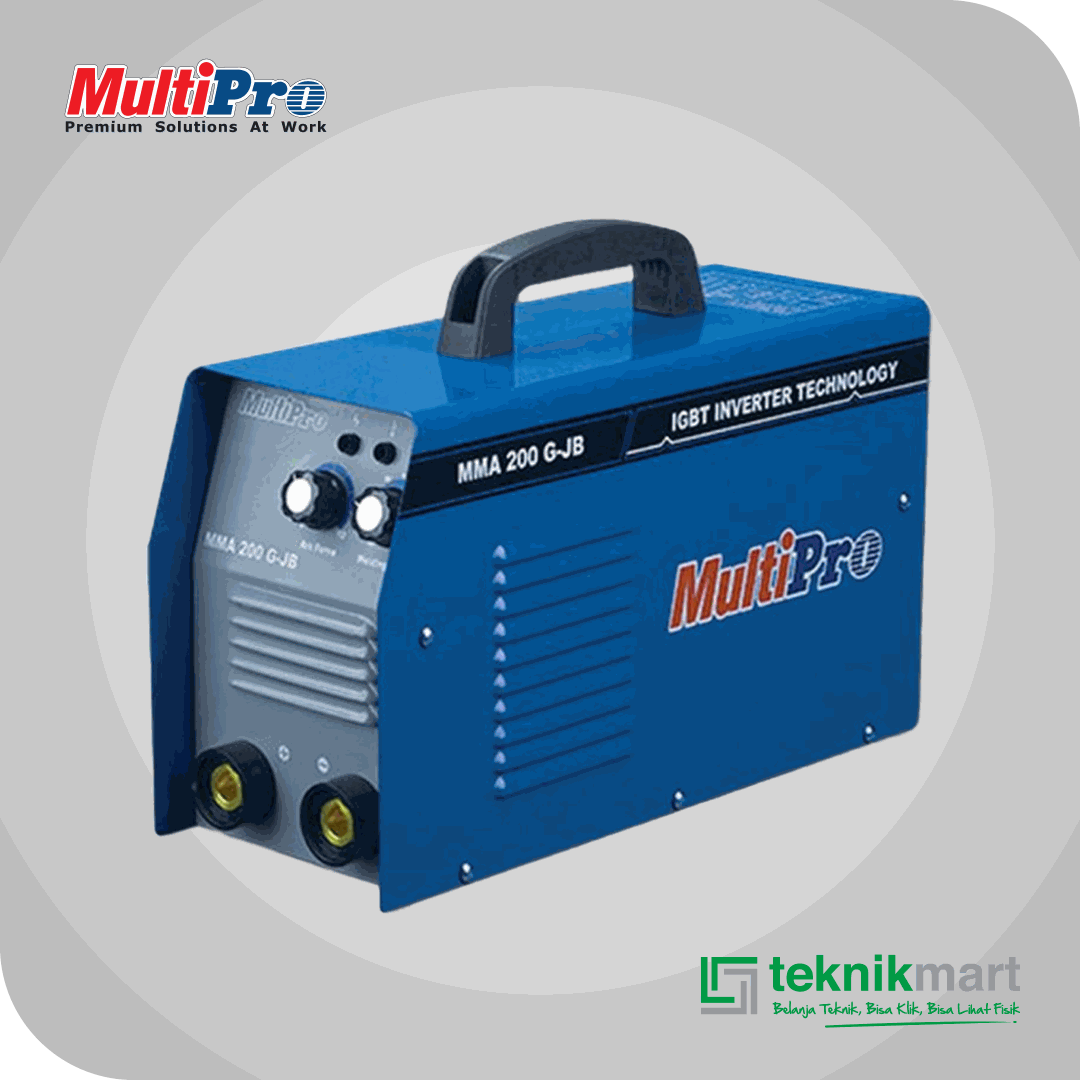

MULTIPRO MMA 200 G-JB WELDING MACHINE 200A 220V 1PHASE 8.2KVA

Description

MULTIPRO MMA 200 G-JB WELDING MACHINE 200A 220V 1PHASE 8.2KVA

Spesifikasi:
Input Voltage : 1ph 220V � 15%
Frequency : 50 / 60 Hz
Rated Input Power : 9.5 KVA
Range Working Voltage : 28 V
No-load Voltage : 80 V
Range of Output Current : 10 ~ 200 A
Rated Input Current : 32 A
Diameter of Electrode : � 1.6 ~ 5.0 mm
Rated Duty Cycle : 60%
Power Factor : ? 0.7
Efficiency : ? 85%
Insulation Type : F
Protection Type : IP21S
Weight : 4.2 Kg
Dimension : 410 x 165 x 290 mm

STANDARD ACCESSORIES
Electrode Holder Set
Earth Clamp Set
Wire Brush / Chipping Hammer
Hand Shield

SUITABLE
Electrode 1.6 ~ 5.0 mm (Basic, Rutile & Cellulose) (AWS E6013, E7018, E7016, E6010, Etc.)
Light & Medium Industrial
Work with Generator
