Description

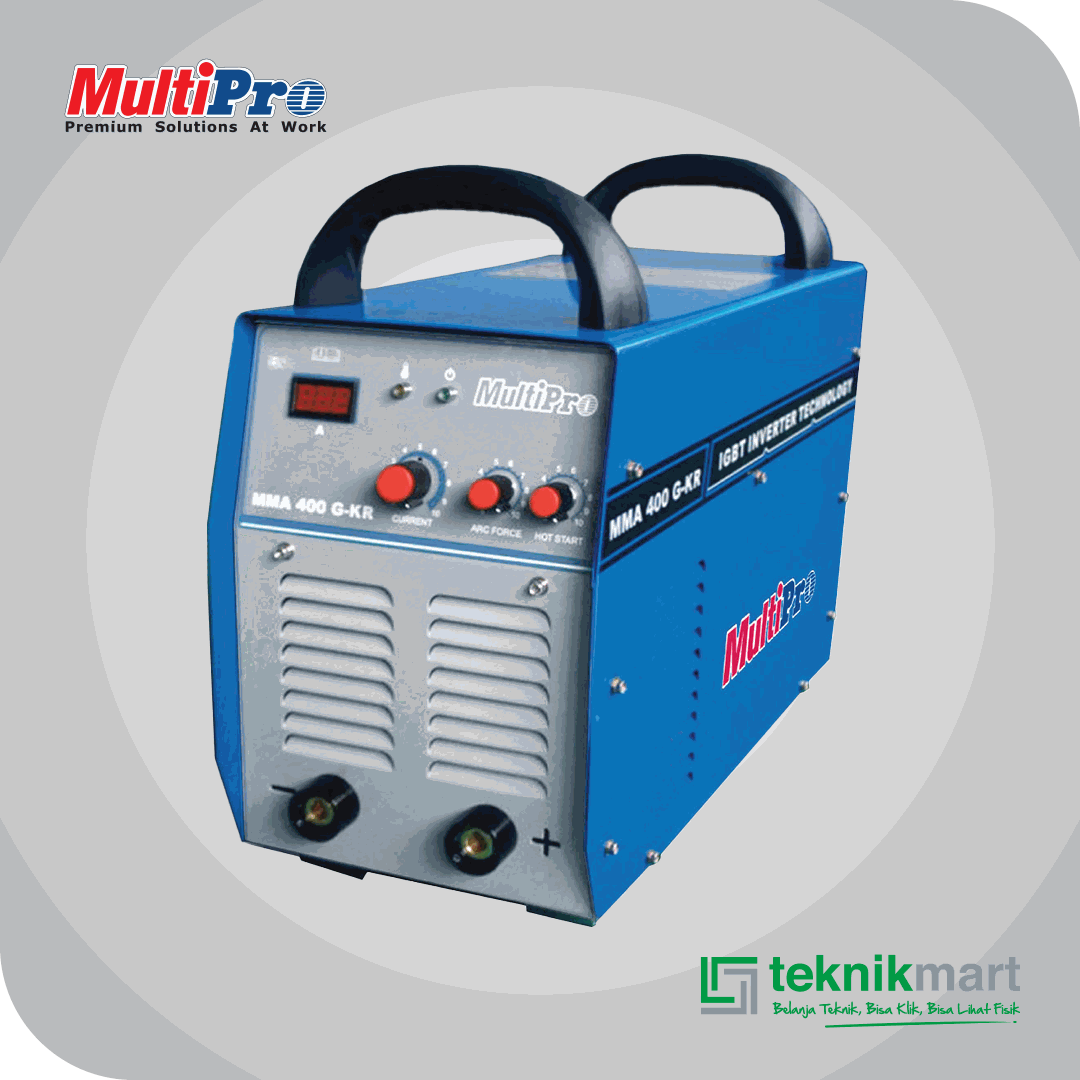

MULTIPRO MMA 400I G-KR WELDING MACHINE 400A 380V 3PHASE 17KVA
Spesifikasi:
Input Voltage : 3ph 380V 15%
Frequency : 50 / 60 Hz
Rated Input Power : 17 KVA
Range Working Voltage : 36 V
No-load Voltage : 81 V
Range of Output Current : 40 ~ 400 A
Rated Input Current : 24 A
Diameter of Electrode : 2.6 ~ 8.0 mm
Rated Duty Cycle : 60%
Power Factor: ? 0.99
Efficiency : ? 85%
Insulation Type: H
Protection Type : IP21S
Weight : 24 Kg
Dimension : 482 x 252 x 490 mm
STANDARD ACCESSORIES
Euro Connector 2 Pcs
SUITABLE
Electrode 2.8 ~ 8.0 mm (Basic & Rutile) (AWS E6013, E7018, E7016, Etc.)
Medium & Heavy Industrial
Work with Generator
