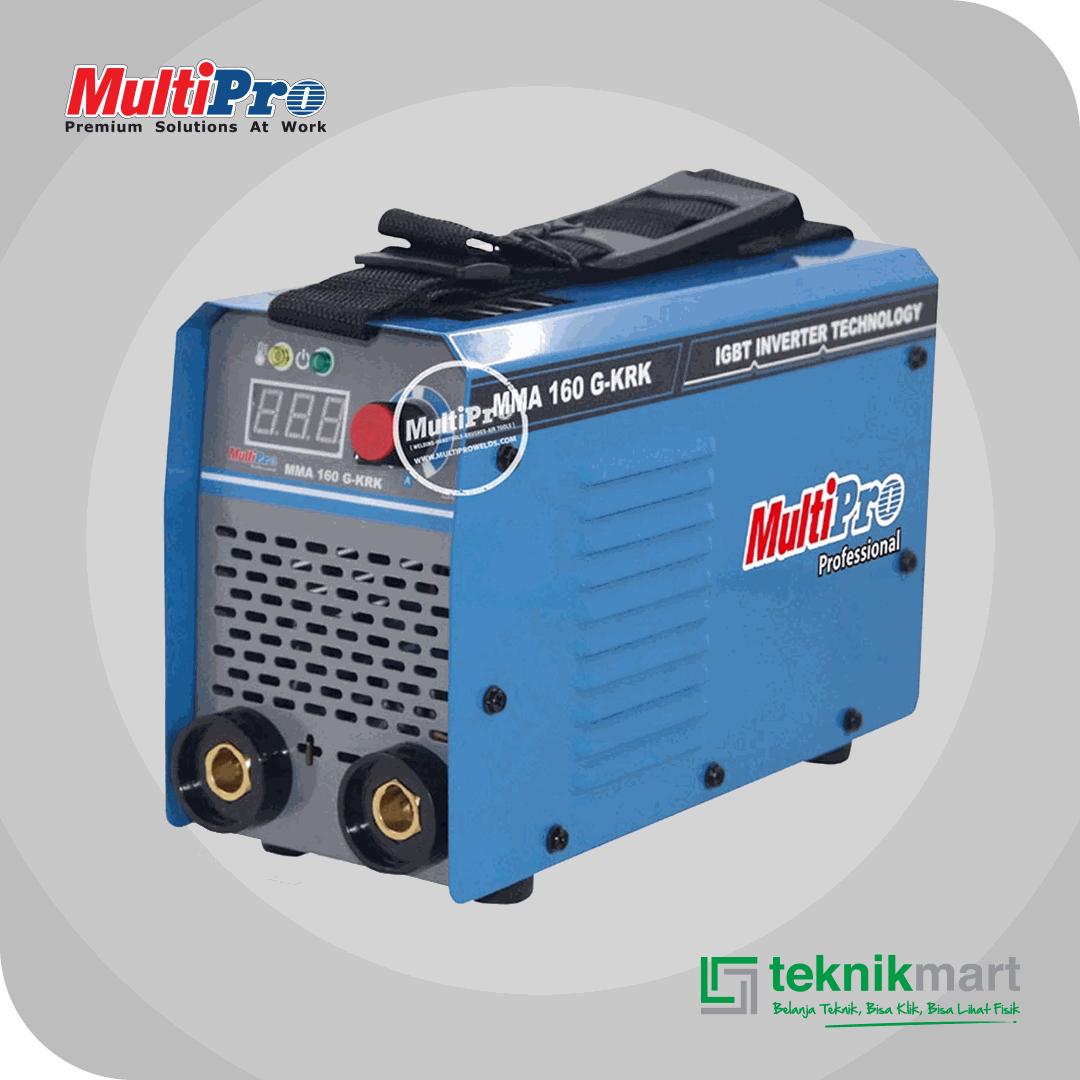

MULTIPRO MMA 160 G-KRK WELDING MACHINE 160A 220V 1PHASE 8KVA

MULTIPRO MMA 160 G-KRK WELDING MACHINE 160A 220V 1PHASE 8KVA

Spesifikasi:

Input Voltage: 1ph 220 V � 15%

Frequency : 50 / 60 Hz

Rated Input Power : 8 KVA

Range Working Voltage : 26.4 V

No-load Voltage : 75 V

Range Of Output Current : 20~160 A

Rated Input Current : 36 A

Diameter Of Electrode : � 2.0~4.0 mm

Rated Duty Cycle : 30%

Power Factor : ? 0.99

Efficiency : ? 85%

Insulation Type : H

Protection Type : IP21S

Weight Machine (Net Weight) : 4.2 Kg

Dimension Machine (LxWxH) : 274 x 115 x 175 mm

Weight Machine + Box (Gross Weight) : 5.1 Kg

Dimension Machine + Box (LxWxH): 370 x 185 x 280 mm
