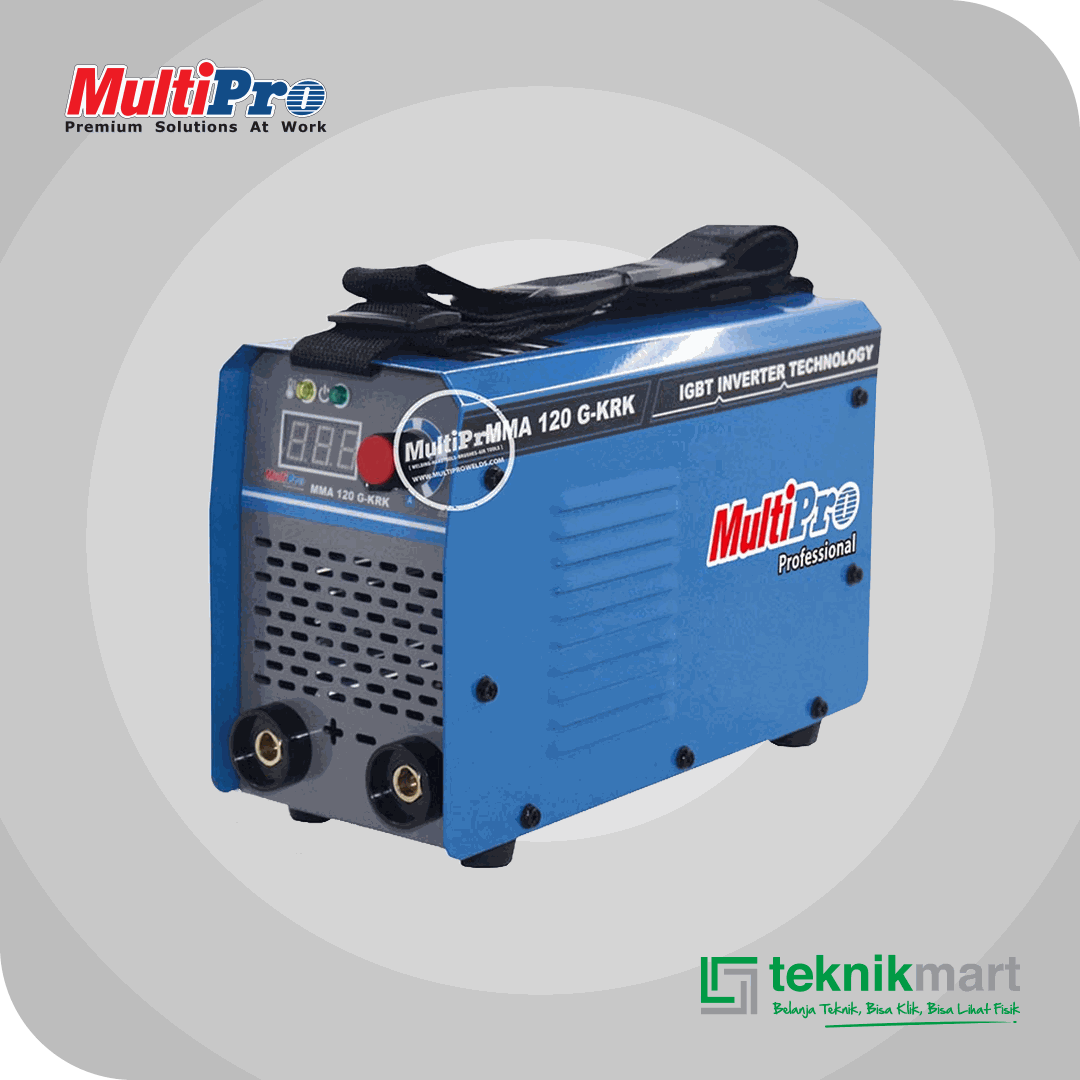

MULTIPRO MMA 120 G-KRK WELDING MACHINE 120A 220V 1PHASE 5KVA

Description

MULTIPRO MMA 120 G-KRK WELDING MACHINE 120A 220V 1PHASE 5KVA

Spesifikasi:
Input Voltage : 1ph 220 V � 15%
Frequency : 50 / 60 Hz
Rated Input Power : 5 KVA
Range Working Voltage : 24.8 V
No-load Voltage : 75 V
Range Of Output Current : 20~120 A
Rated Input Current : 26 A
Diameter Of Electrode : � 2.0~3.2 mm
Rated Duty Cycle : 60%
Power Factor : ? 0.99
Efficiency : ? 85%
Insulation Type : H
Protection Type : IP21S
Weight Machine (Net Weight) : 3.5 Kg
Dimension Machine (LxWxH) : 274 x 115 x 175 mm
Weight Machine + Box (Gross Weight) : 4.7 Kg
Dimension Machine + Box (LxWxH) : 370 x 185 x 280 mm
