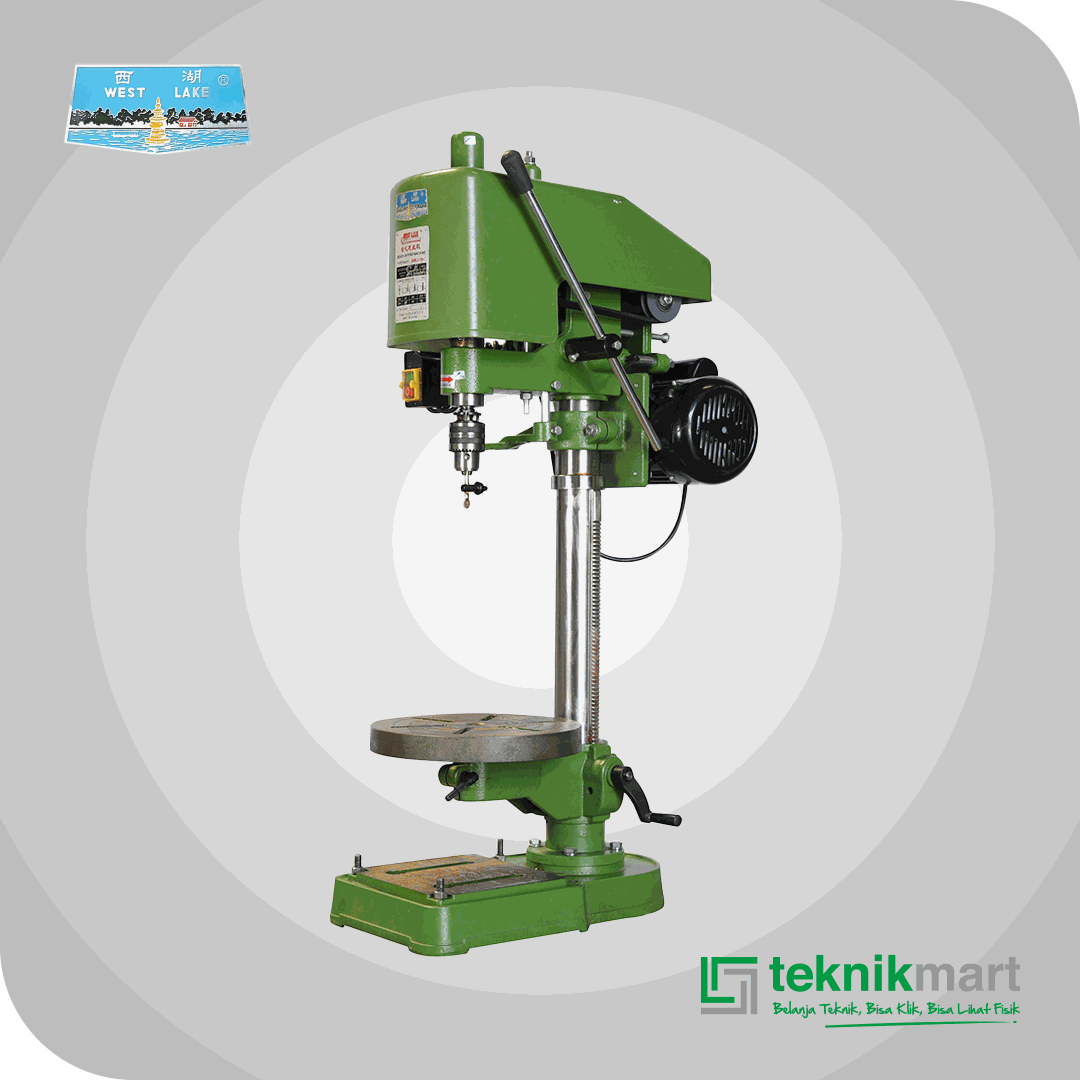

WESTLAKE SWJ-16 A TAPPING MACHINE 1 PHASE

WESTLAKE SWJ-16 A TAPPING MACHINE 1 PHASE, mesin yang andal untuk membuat ulir pada berbagai komponen logam dengan presisi

Spesifikasi:

Maximum Drilling Capacity (mm): M16/M12

Diameter of Column (mm) : 73

Spindle Travel (mm): 50

Distance Spindle Axis to Column Generating Line (mm) : 183

Max. Distance Spindle Nose (mm): Table 485, Base 660

Spindle Taper: B18

Spindle Speeds Range (rpm): 240/380/750

Spindle Speeds Series: 3

Dimensions Worktable Surface (mm): 270×280

Dimensions of Base (mm): 520×310

Overall Height (mm): 1220

Power Motor (W): 750

Voltage (V): 220

Packing Dimensions (cm): 68x42x128

Berat (Kg): 123

Warranty: No
