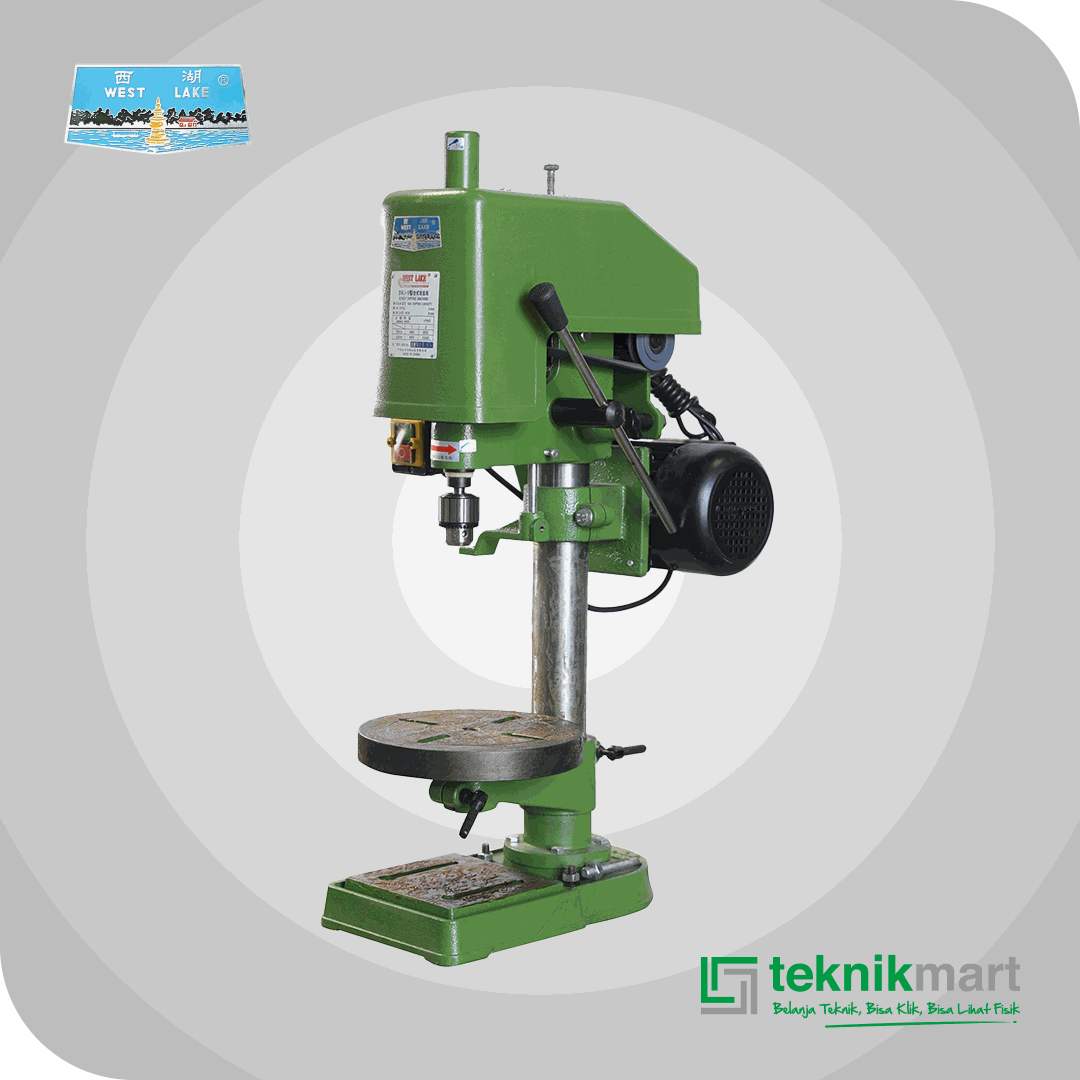

WESTLAKE SWJ-12 A TAPPING MACHINE 1 PHASE

WESTLAKE SWJ-12 A TAPPING MACHINE 1 PHASE, mesin yang andal untuk membuat ulir pada berbagai komponen logam dengan presisi

Spesifikasi:

Maximum Drilling Capacity (mm): M12/M8

Diameter of Column (mm) : 60

Spindle Travel (mm): 60

Distance Spindle Axis to Column Generating Line (mm) : 127

Max. Distance Spindle Nose (mm): Table 240, Base 370

Spindle Taper: B16

Spindle Speeds Range (rpm): 260/440/750

Spindle Speeds Series: 3

Dimensions Worktable Surface (mm): 235×235

Dimensions of Base (mm): 400×250

Overall Height (mm): 810

Power Motor (W): 370

Voltage (V): 220

Packing Dimensions (cm): 58x37x90

Berat (Kg): 73.0

Warranty: No
