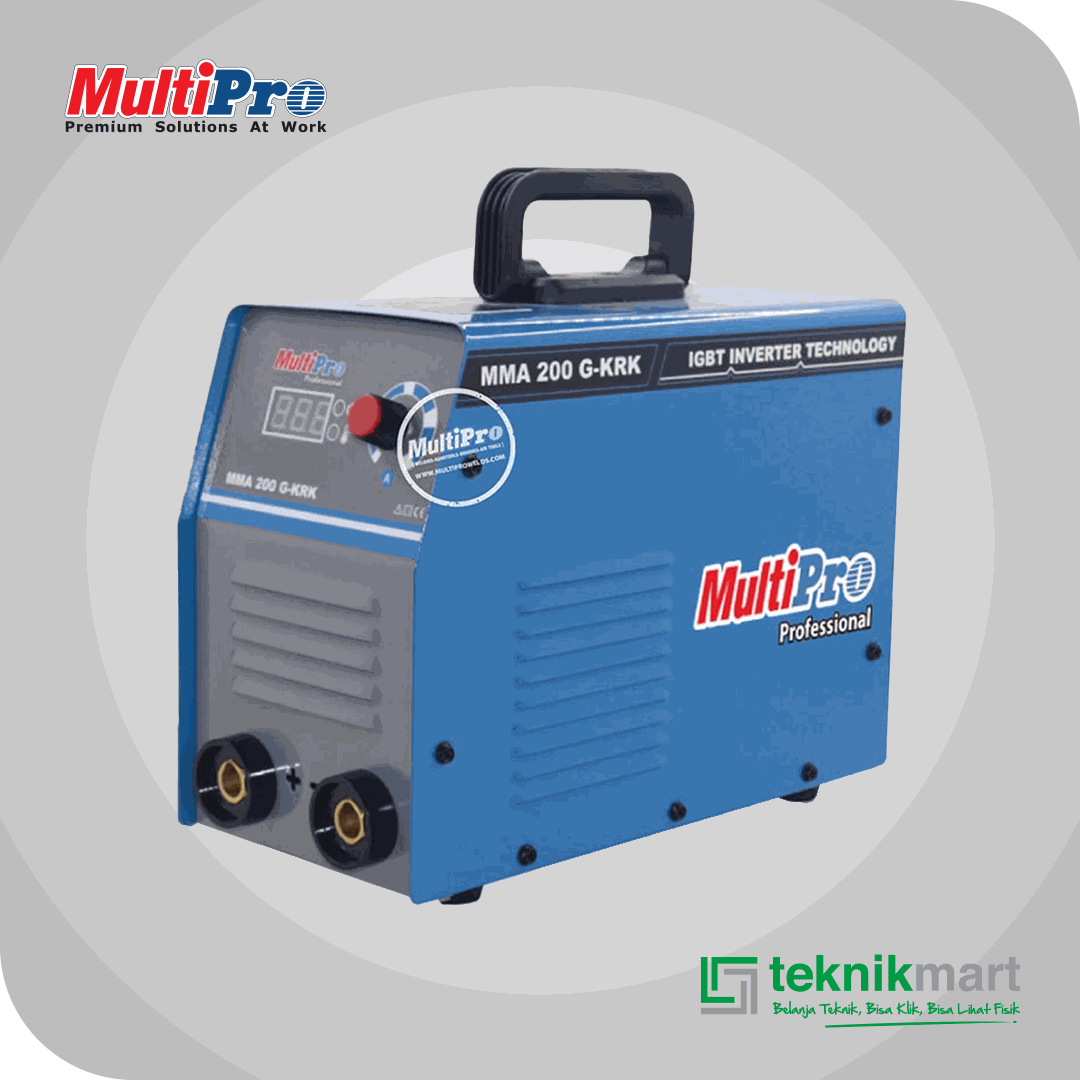

MULTIPRO MMA 200 G-KRK WELDING MACHINE 200A 220V 1PHASE 10KVA

MULTIPRO MMA 200 G-KRK WELDING MACHINE 200A 220V 1PHASE 10KVA

Spesifikasi:

Input Voltage : 1ph 220 V � 15%

Frequency : 50 / 60 Hz

Rated Input Power : 10 KVA

Range Working Voltage : 28 V

No-load Voltage : 75 V

Range Of Output Current : 20~200 A

Rated Input Current : 46 A

Diameter Of Electrode : � 2.0~5.0 mm

Rated Duty Cycle : 30%

Power Factor : ? 0.99

Efficiency : ? 85%

Insulation Type : H

Protection Type : IP21S

Weight Machine (Net Weight): 5.5 Kg

Dimension Machine (LxWxH) : 325 x 152 x 245 mm

Weight Machine + Box (Gross Weight) : 6.8 Kg

Dimension Machine + Box (LxWxH): 395 x 255 x 330 mm
