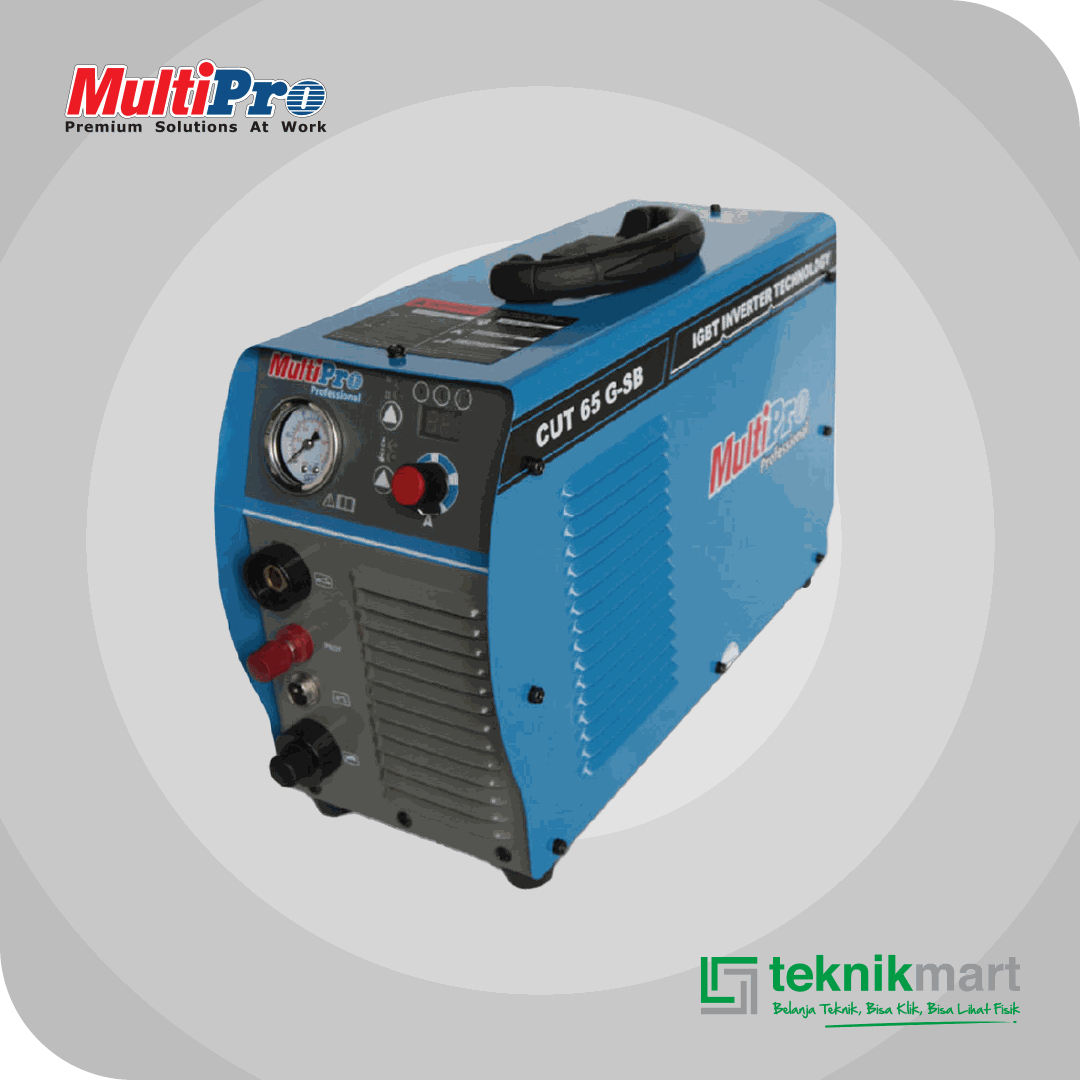

MULTIPRO CUT 65 G-SB PLASMA CUTTING MACHINE 65A 380V 11,5KVA

Description

MULTIPRO CUT 65 G-SB PLASMA CUTTING MACHINE 65A 380V 11,5KVA

Spesifikasi:
Input Power Voltage : 3ph 380 V � 15%
Input Voltage Frequency : 50 / 60 Hz
Rated Input Power : 11.5 KVA
Rated Input Current : 14 A
No-load Voltage : 280 V
Range of Output Current : 20 – 65 A
Arc Striking Mode : HF
Range Working Voltage : 88-106 V

Conventional Air Compressors Cutting Performance
Maximum Cutting Thickness : 40 mm
Excellent Cutting Thickness : 20 mm
Working Air Pressure : 0.4 – 0.55 Mpa
Rated Duty Cycle : 60 %
Power Factor : ? 0.7
Efficiency : ? 85%
Insulation Type : F
Protection Type : IP21S
Weight : 9.2 Kg
Dimension : 407 x 160 x 280 mm

STANDARD ACCESSORIES
6M Plasma Torch P80
Part Kits Set Nozzle
1.1/1.3 mm
2 pcs Electrode
Roller Guide
Earth Clamp Set
Air Hose Set & Air Regulator
