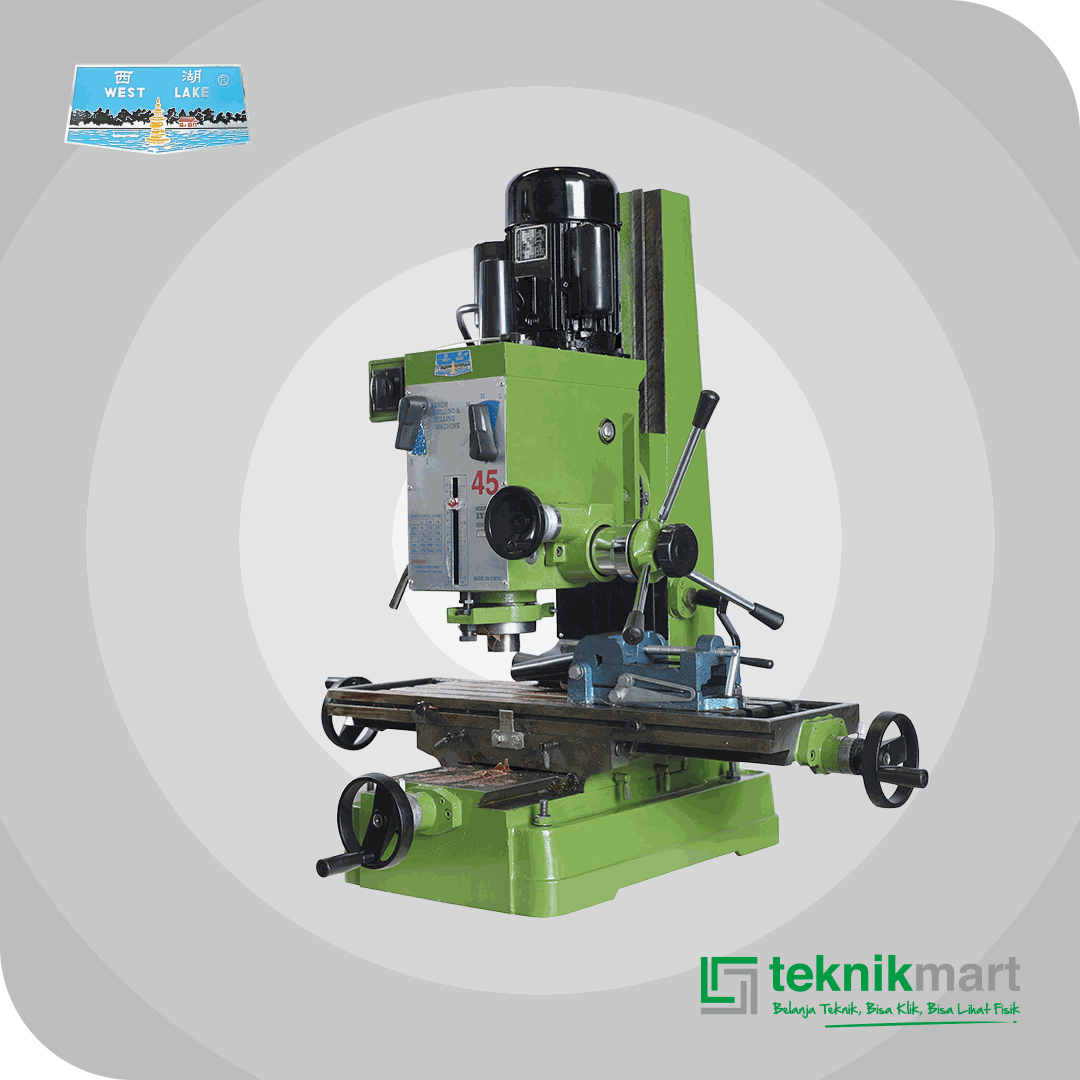

WESTLAKE ZX 7045 DRILLING & MILLING MACHINE

WESTLAKE ZX 7045 DRILLING & MILLING MACHINE, mesin multi-fungsi yang kuat untuk pengerjaan logam, menggabungkan kemampuan bor dan milling dalam satu unit

Spesifikasi:

Maximum Drilling Capacity (mm): 45

Max. Face of Vertical Milling (mm) : 80

Diameter of Vertical Milling (mm) : 28

Spindle Travel (mm): 120

Distance Spindle Axis to Column Generating Line (mm): 260

Max. Distance Spindle Nose to Table : 475

Spindle Tapper : MT4

Spindle Speeds Range (rpm): 95-1600

Spindle Speeds Series : 6

Dimensions Worktable Surface (mm) : 730×210/820×240

Table Travel (mm): 550×220

Overall Height (mm): 1050

Power Motor (W) : 1100

Voltage (V): 220

Packing Dimensions (cm): 97x77x116

Berat (Kg) : 305

Warranty: No
