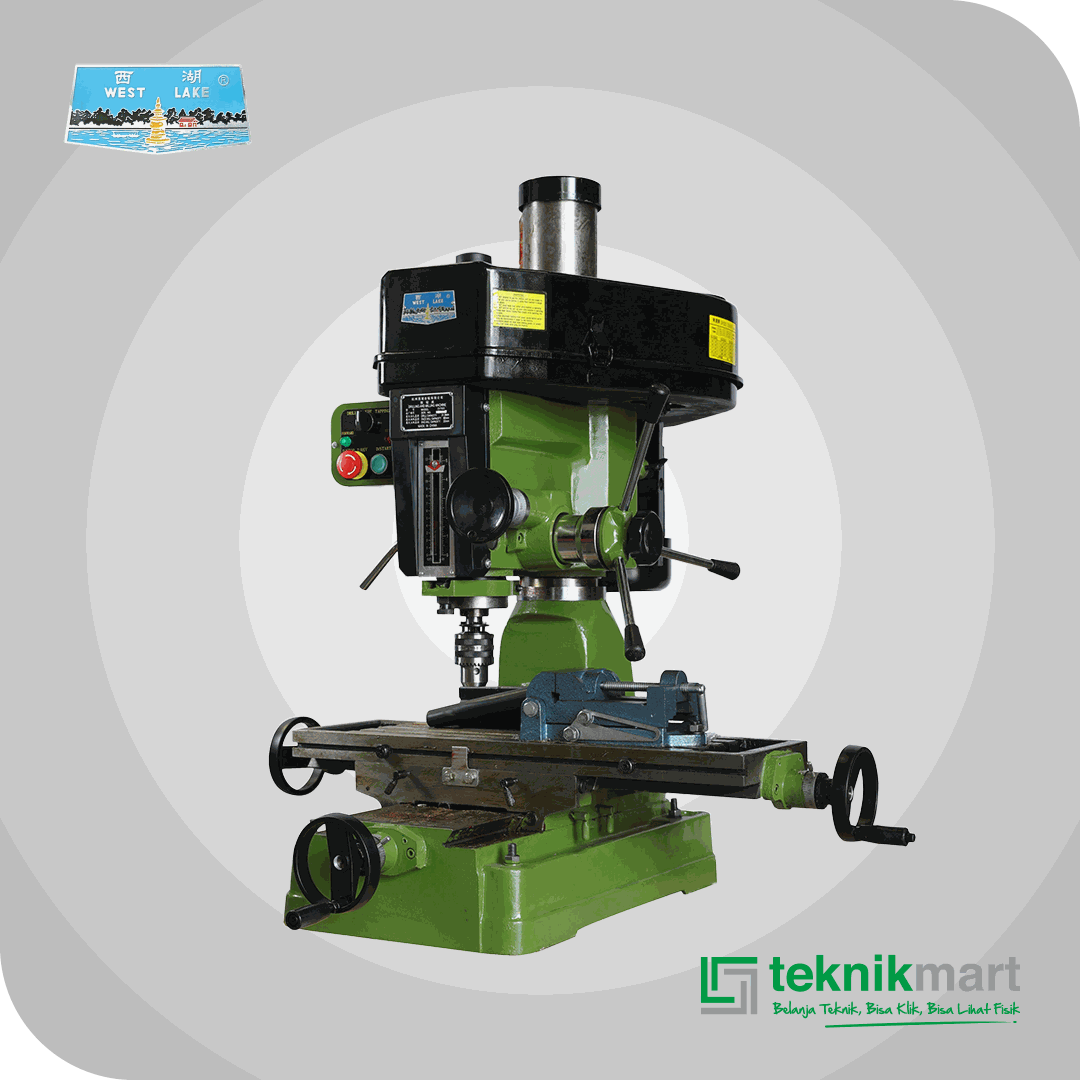

WESTLAKE ZX 7032 DRILLING & MILLING MACHINE

WESTLAKE ZX 7032 DRILLING & MILLING MACHINE, Ideal untuk profesional di bidang mekanik, tukang kayu, dan industri lain yang memerlukan presisi tinggi

Spesifikasi:

Maximum Drilling Capacity (mm): 31.5

Max. Face of Vertical Milling (mm): 80

Diameter of Vertical Milling (mm): 22

Spindle Travel (mm): 130

Distance Spindle Axis to Column Generating Line (mm): 202

Max. Distance Spindle Nose to Table: 460

Spindle Tapper: MT3

Spindle Speeds Range (rpm): 100-2150

Spindle Speeds Series : 12

Dimensions Worktable Surface (mm): 730×210

Table Travel (mm): 500×175

Overall Height (mm): 1100

Power Motor (W): 1100

Voltage (V): 380

Packing Dimensions (cm): 97x77x116

Phase: 3

Berat (Kg): 290

Warranty : No
