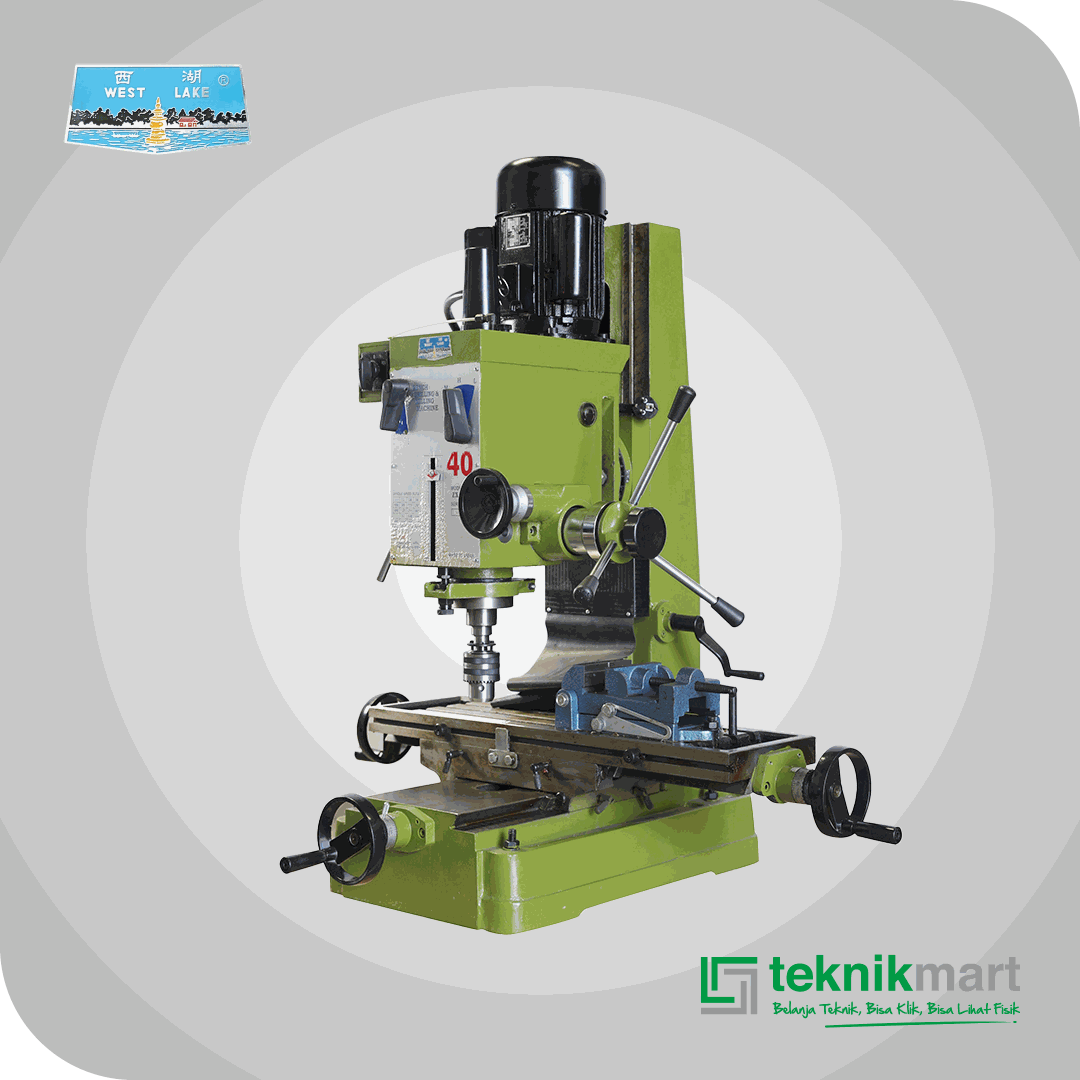

WESTLAKE ZX 40 A DRILLING & MILLING MACHINE

WESTLAKE ZX 40 A DRILLING & MILLING MACHINE

Spesifikasi:

Max. Driling Capacity : 40 mm

Width of facemiling : 80 mm

Diameter Of Vertical miling : 32 mm

Spindle travel : 120 mm

Distance Spindle : 261 mm

Max. Distance Spindle nose to base : 475 mm

Spindle taper : MT.4 or R8

Spindle speeds range (rpm) : 95 – 1600 rpm

Spindle speeds : 6

Dimension of worktable surface : 730 x 210 mm

Travel of worktable : 500 x 175 mm

Overall height : 1050 mm

Motor : 750 w

Berat Kotor : 320 Kg

Berat bersih : 270 Kg

Dimensi : 88 x 78 x 115 cm

Warranty: No
