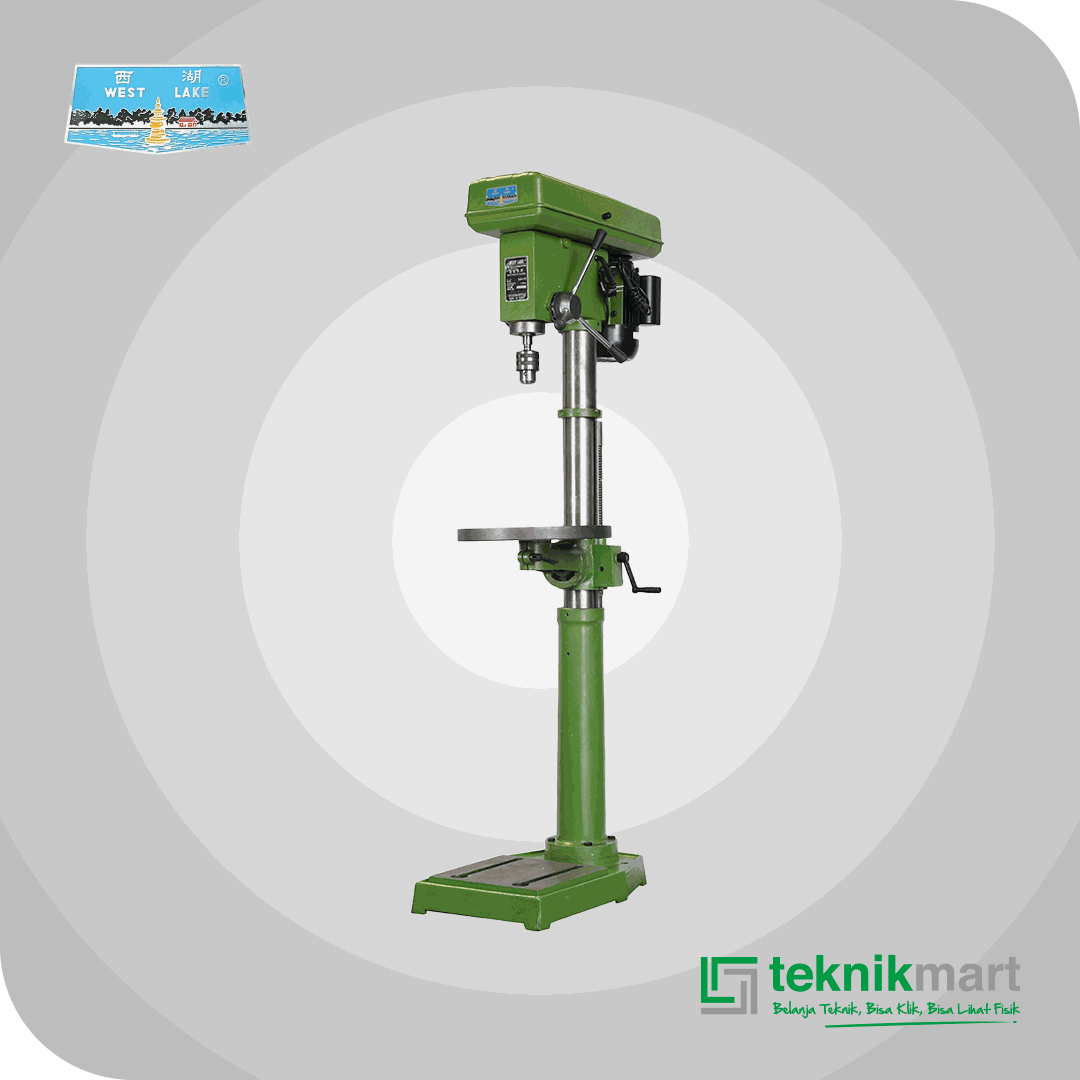

WESTLAKE ZQD 4132 BENCH DRILLING MACHINE 32MM (BODY TINGGI)

WESTLAKE ZQD 4132 BENCH DRILLING MACHINE 32MM (BODY TINGGI)

Spesifikasi:

Maximum Drilling Capacity (mm): 31.5

Diameter of Column (mm): 85

Spindle Travel (mm): 110

Distance Spindle Axis to Column Generating Line (mm): 220

Max. Distance Spindle Nose (mm): Table 390, Base 1140

Spindle Taper: MT3

Spindle Speeds Range (rpm): 150-2270

Spindle Speeds Series: 12

Dimensions Worktable Surface (mm): 280×280

Overall Height (mm): 1680

Power Motor (W): 1100

Voltage (V): 220

Dimensions of Base (mm): 556×356

Packing Dimensions (cm): 108x77x34

Phase: 1

Berat (Kg): 117

Warranty:No
