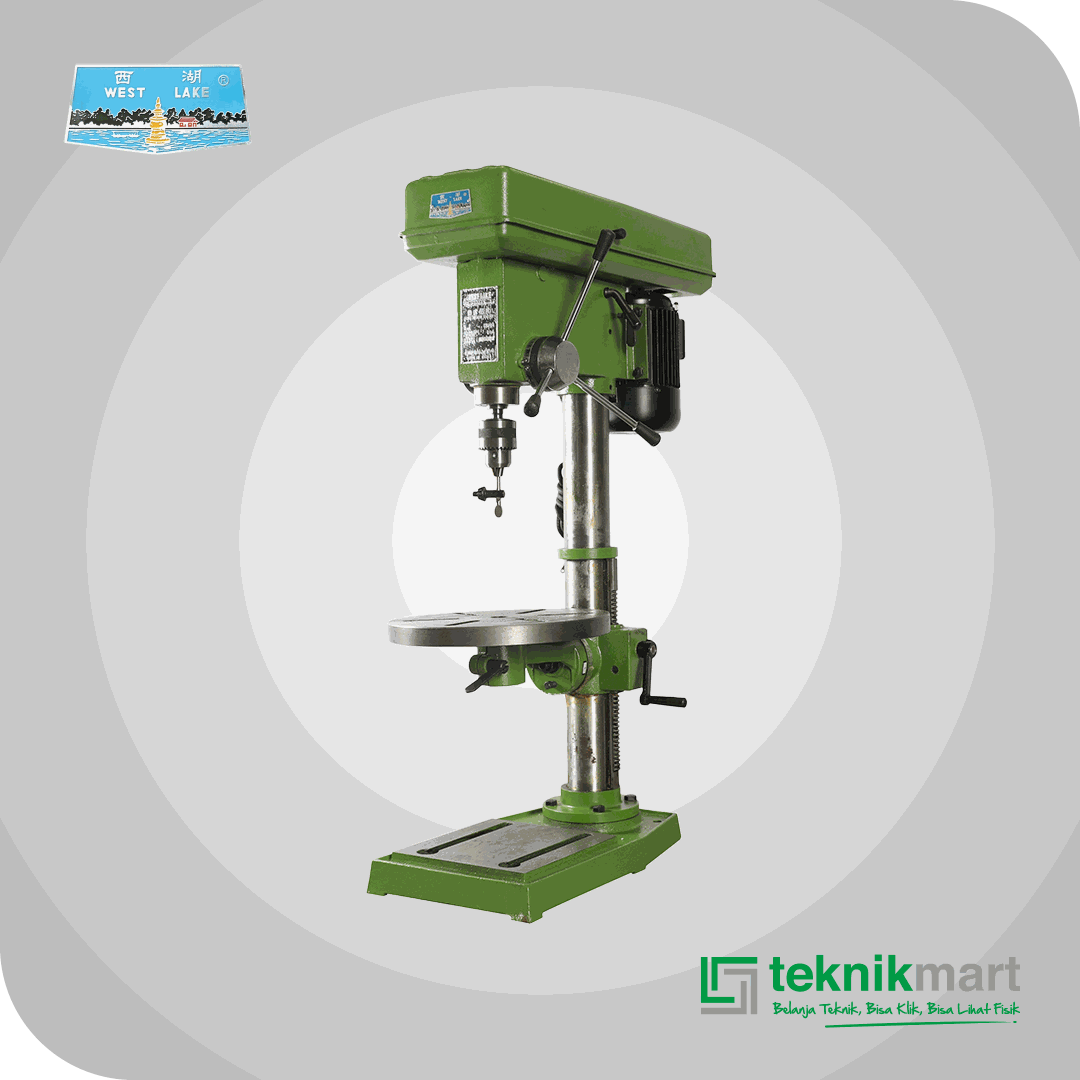

WESTLAKE ZQ 4116 BENCH DRILLING MACHINE 16MM 1PHASE

WESTLAKE ZQ 4116 BENCH DRILLING MACHINE 16MM 1PHASE

Spesifikasi:

Motor : 550w (singlephase) or 750w (threephase)

Max. drilling capacity : 16/19mm

Diameter of column : 70mm

Spinder travel : 85mm

Distance spindle axis to column surface : 180mm

Max distance spindle nose to worktable : MT.2:mm (B18:400mm)

Max distance spindle nose to base : MT.2:592mm (B18:560mm)

Spindle taper : MT.2 or B16

Spindle speeds range : 400-2420 or 270-2880rpm

Spindle speeds : 5 or 12

Dimension of worktable surface : 240 x 240mm or 300mm

Dimension of base worktable surface : 220x220mm

Overall height : 956mm

Motor power : 370/550W

Gross weight : 66 Kg

Net weight : 63.5Kg

Dimensi : 92x52x28cm

Warranty: No
