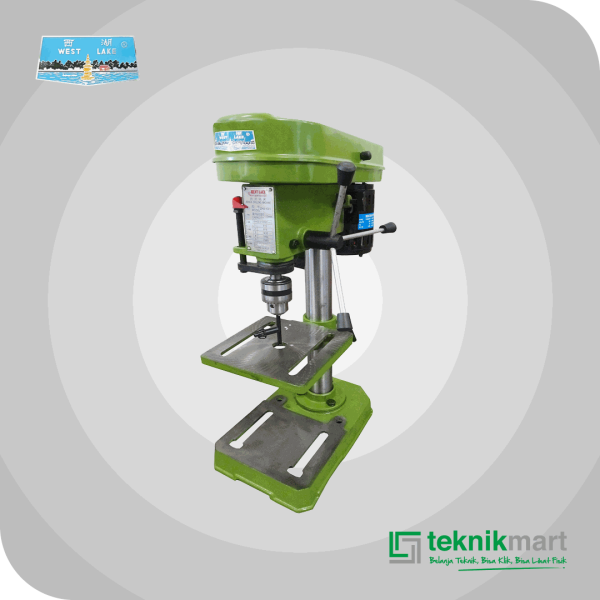

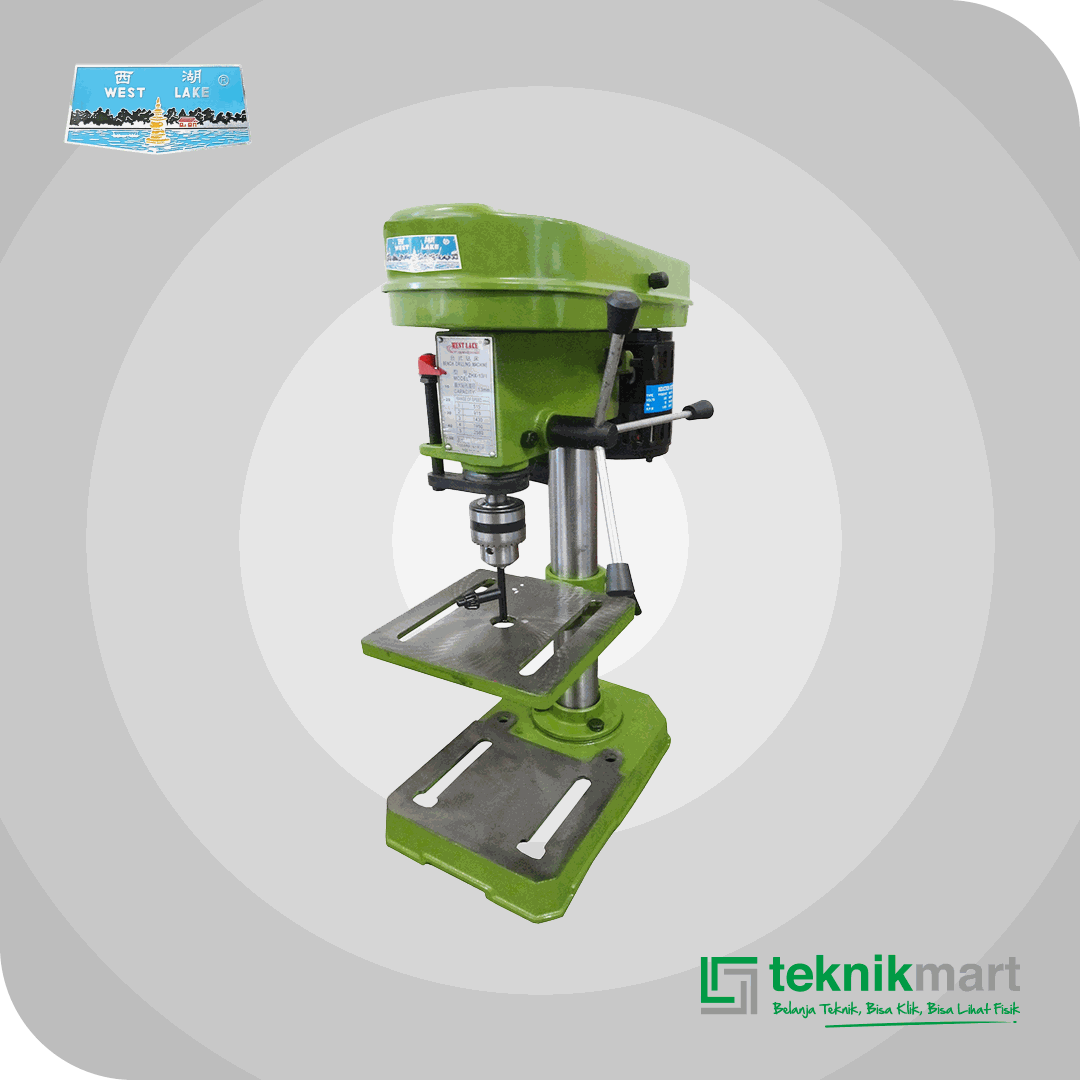

WESTLAKE ZHX 13/I NEW BENCH DRILLING MACHINE 13MM

WESTLAKE ZHX 13/I NEW BENCH DRILLING MACHINE 13MM

Spesifikasi:

Max. drilling capacity : 13mm

Diameter of column : 46mm

Spinder travel : 50mm

Distance spindle axis to column surface : 105mm

Max distance spindle nose to worktable : 220mm

Max distance spindle nose to base : 300mm

Spindle taper : B16

Spindle speeds range : 515-2580rpm

Spindle speeds : 5

Dimension of worktable surface : 160 x 160mm

Dimension of base worktable surface : 290 x 190mm

Overall height : 580mm

Motor power : 150W

Gross weight 16 Kg

Net weight : 15Kg

Dimensi : 44x35x23cm

Warranty: No
