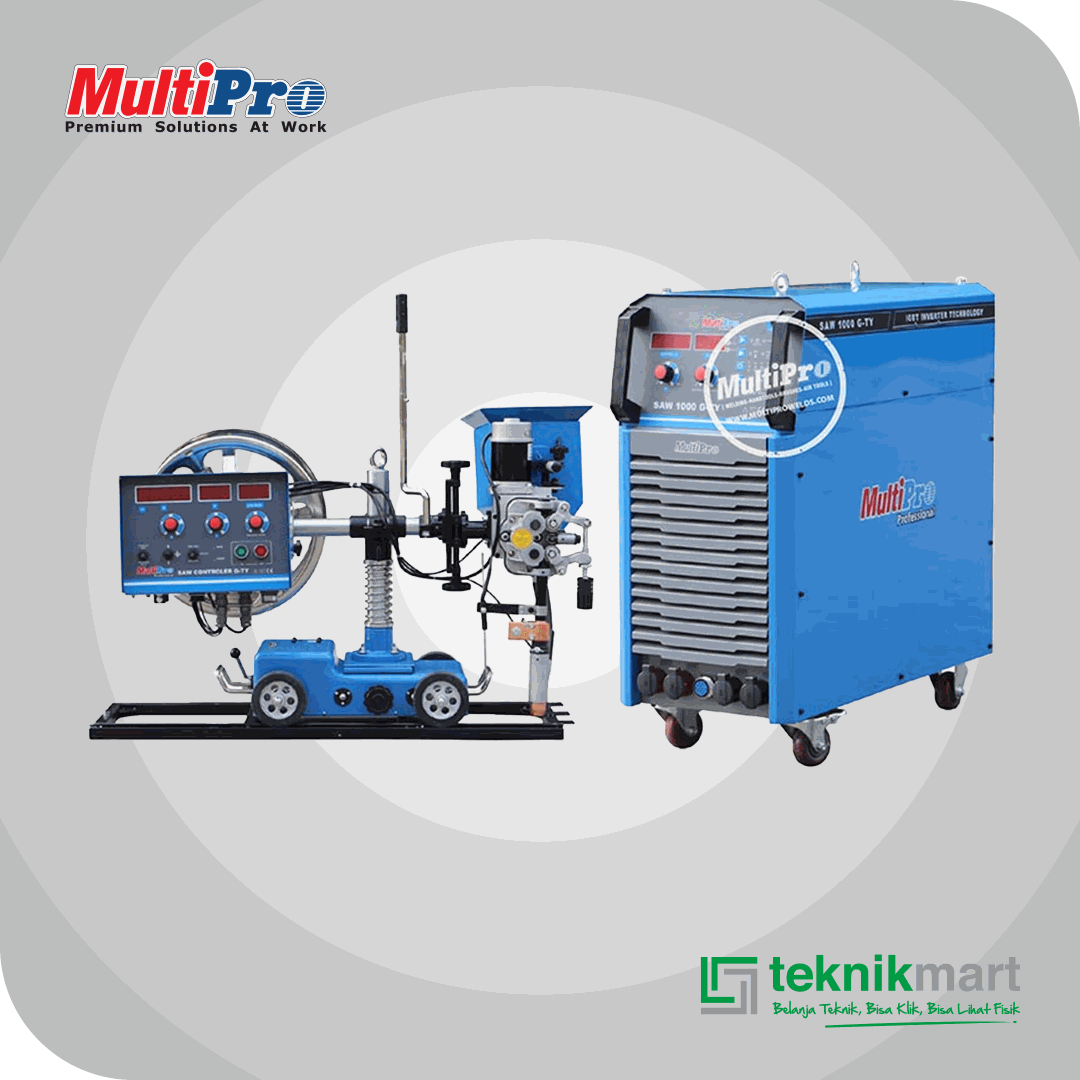

MULTIPRO SAW 1000 G-TY SUBMERGED ART WELDING INVERTER POWER SOURCE 380V 3PHASE 131.1KVA

Description

MULTIPRO SAW 1000 G-TY SUBMERGED ART WELDING INVERTER POWER SOURCE 380V 3PHASE 131.1KVA

Spesifikasi:
POWER SOURCE
Input Voltage : 3ph 380 V � 15%
Frequency : 50 / 60 Hz
Rated Input Power : 131.1 KVA
Rated Input Current : 115 A
No-load Voltage : SAW 90 � 10 MMA 75 � 5 VDC
Range of Output Current : 60 ~ 1000 A
Rated Duty Cycle : 100 %
Efficiency : 88 %
Insulation Type: F
Protection Type : IP21S
Weight : 95.5 Kg
Dimension (LxWxH): 775 x 550 x 810 mm

SAW TRACTOR 1000 G-TY
The Rated Supply Voltage : 1 ~ 110 V/50 Hz (By Power Source)
Suitable Diameter of Wire : � 2.0, 2.4, 3.0, 4.0, 5.0, 6.0
Rated Welding Current : 1600 A
Rated Duty Cycle : 100 %
Welding Speed : 20 ~ 150 cm/min
Wire-Feed Speed : 25 ~ 2500 cm/min (Can Choose 135 ~ 675 cm/min)
Wire Feed Method : Constant or Alternative Wire-Feed
Adjustable Range of Up-Down (The Tractor’s Column) : 100 mm
Horizontal Adjustable Range of (The Tractor’s Column): 93 mm
The Distance of Tractor Wheel : 300 mm
The Distance of Tractor Axes : 350 mm
Horizontal Rotated Angle (The Head Round the Column): �90�
Front-Back Sloped Angle (The Tractor’s Head): �45�
Left-Right Sloped Angle (The Tractor’s Head) : �45�
Capacity of Flux Hopper : 6 L
Capacity of Wire Reel : 25 Kg
Protection Grade: IP21C
Weight (Without Flux and Wire): 54 Kg
External Dimension :1020 x 480 x 740 mm
